Aduro 9.3

  • Description
  • Technical
  • Download
  • Film

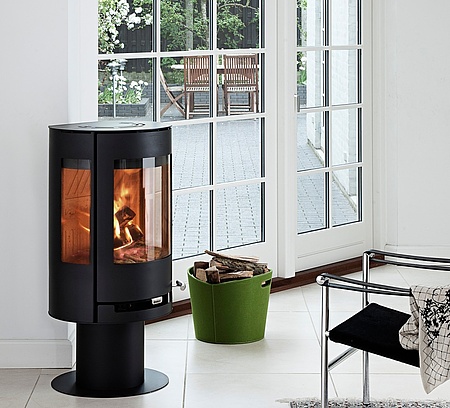

The Aduro 9.3 is the first wood burning stove on a pedestal in the Aduro series. The pedestal visually elevates the combustion chamber and intensifies focus on the flames. The two side panes of glass give extra generous visual access to the flames, while ensuring a light and elegant look. In effect, this is a sculpture in your room.

Effect

Nominal power

6 kW

Operational area

3-9 kW

Heats

30-140 m2

Energy efficiency

81,3%

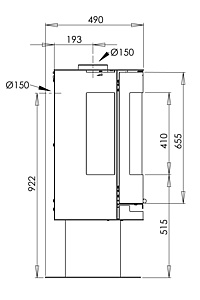

Measurements

Flue outlet top/rear

Ø150 mm

Dimension (HxWxD)

104 x 50 x 49 cm

Distance from bottom to centre of rear outlet

92,2 cm

Distance from centre of exhaust branch to rear edge of wood burning stove

19,3 cm

Width of wood chamber

40 cm

Max log length

39 cm

Weight

103 kg

Distance to combustible material

Behind

15 cm

At side

70 cm

Behind stove with insulated flue pipe

10 cm

To furniture

90 cm

Endorsements

Ecolabel, DIN EN13240, CE, Defra & NS3058





Specifications

Convection stove





Air-wash system





Primary, secondary and tertiary air supply





Ashpan





Distance to combustible material
