Aduro 14

  • Description
  • Technical
  • Download

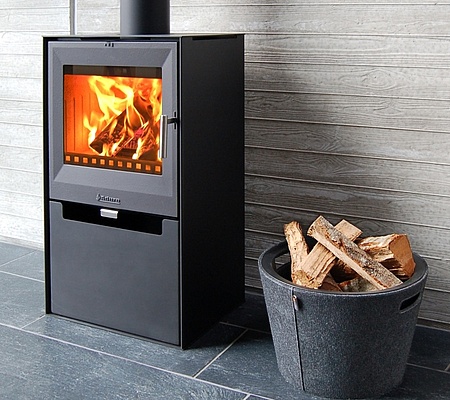

Aduro 14 combines sheet iron and cast iron in a simple and clear-cut cubist design. Sheet iron is ideal for the smooth surfaces and sharp corners, forming a striking contrast to the sturdy, rustic cast iron of the door. The stern but harmonious expression is completed by the integrated, roomy storage space, which is the perfect place to keep fire irons. Further features of this stove are its spacious combustion chamber, simple operation and super combustion.

Effect

Nominal power

6,5 kW

Operational area

3-9 kW

Heats

30-140 m2

Energy efficiency

80,4%

Measurements

Flue outlet top

Ø150 mm

Dimension (HxWxD)

90 x 51,1 x 37 cm

Distance from centre of exhaust branch to rear edge of wood burning stove

18,5 cm

Width of wood chamber

40 cm

Max log length

39 cm

Weight

85 kg

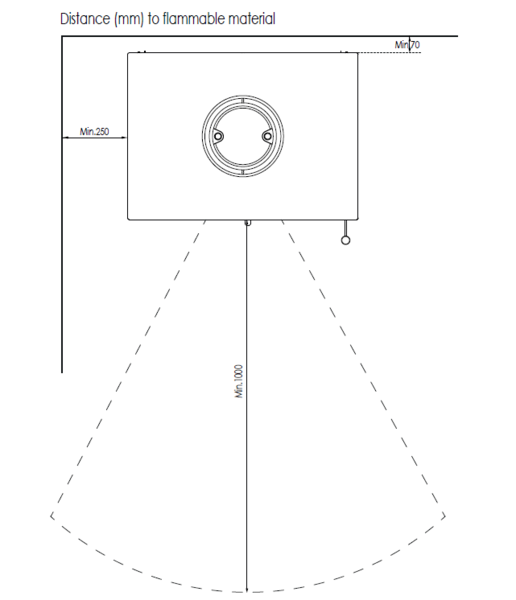

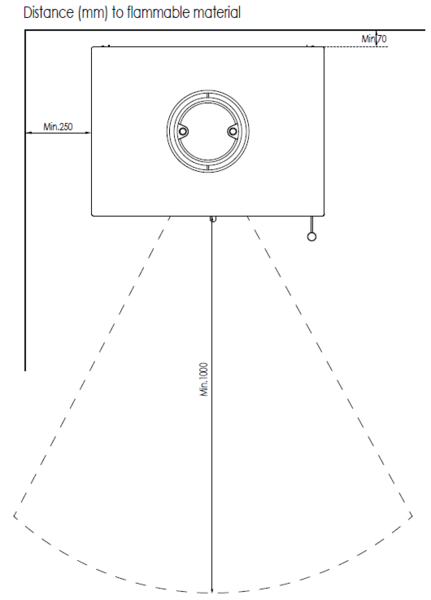

Distance to combustible material

Behind

15 cm

At side

25 cm

Behind stove with insulated flue pipe

7 cm

Distance to combustible material in corner arrangement

8 cm

To furniture

100 cm

Endorsements

Ecolabel, DIN EN13240, CE & NS3058



Specifications

Convection stove



Air-wash system



Primary, secondary and tertiary air supply



Ashpan



Measurements

Distance to combustible material
