NEW - Aduro 22.4 Lux

The wall-mounted Aduro 22.4 Lux is an elegant, floating wood burning stove. Characteristic for this stove is the large black glass door and the integrated handles, which give the stove an exclusively look. Furthermore, the side glasses accentuate the flames in the most attractive way and secure a 180-degree view of the fire... Read more

Interested in buying?

Buy your wood burning stove from one of our dealers. Follow the link to find the dealer list.

  • Description
  • Technical
  • Related products

The wall-mounted Aduro 22.4 Lux is an elegant, floating wood burning stove. Characteristic for this stove is the large black glass door and the integrated handles, which give the stove an exclusively look. Furthermore, the side glasses accentuate the flames in the most attractive way and secure a 180-degree view of the fire.

External air supply

Aduro 22.4 Lux comes with external air supply, in which the air for the combustion is supplied from outside and directly into the wood burning stove. You hide the air intake itself by installing it behind or underneath the stove. The obvious choice if you live in a very airtight house.

See our smart kit for mounting the fresh air here.

Effect

Nominal power

5,5 kW

Operational area

3-9 kW

Heats

30-140 m2

Energy efficiency

> 78%

SEER

68%

Energy class

A (A++ - G)

Advantages

✓ Convection stove



✓ Air-wash system



✓ Primary, secondary and tertiary air supply



✓ Ash pan



✓ Equipped with Aduro-tronic



✓ Possibility of extended warranty

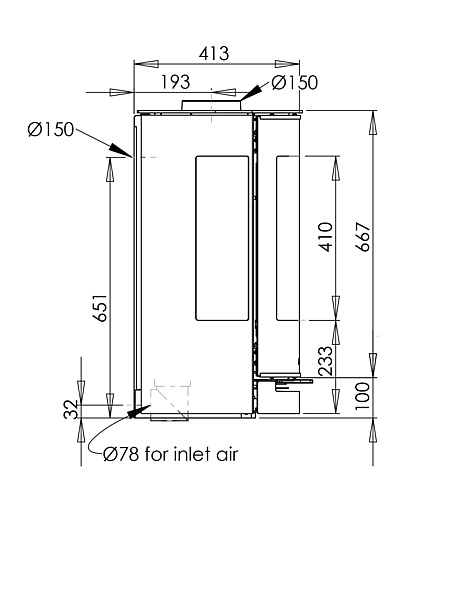

Measurements

Flue outlet top/rear

Ø150 mm

Dimension (HxWxD)

75,7 x 44 x 41,3 cm

Distance from bottom of stove to centre of rear outlet

NB: The lower edge of the stove must be minimum 22,5 cm above the floor.



min. 65,1 + 22,5 cm

Distance from centre of exhaust branch to rear edge of wood burning stove

19,3 cm

Width of combustion chamber

36 cm

Max log length

35 cm

Weight

80 kg

Measurements

Distance to combustible material

Behind



7,5 cm



To the side



70 cm



To furniture



100 cm



Please ensure that all local rules and regulations are complied with, including CE marking of the exhaust connector. Additionally, distance requirements to flammable material for the exhaust connector must be respected.

Distance to combustible material

Endorsements

DIN EN13240, CE, NS3058 & Ecodesign

Download

For user manual and DoC for Aduro 22.4 Lux, click here.
