Convection wood burning stove with side glass

Aduro 9

An impressively large glass area is achieved by adding side panes and minimising the bars between the glass in the door and the glass at the sides. Visual access to the living fire has been a crucial parameter all the way – so an efficient air-wash system ensures that soot doesn’t collect on the glass at the front or sides. This is a... Read more

Interested in buying?

Buy your wood burning stove from one of our dealers. Follow the link to find the dealer list.

Click here to see our dealers​​​​​​​

  • Description
  • Technical

An impressively large glass area is achieved by adding side panes and minimising the bars between the glass in the door and the glass at the sides. Visual access to the living fire has been a crucial parameter all the way – so an efficient air-wash system ensures that soot doesn’t collect on the glass at the front or sides. This is a timeless and elegant fixture for modern homes.

You can buy a special floor hearth for Aduro 9. The hearth comes in two parts, of which one part is put in front of the stove and can easily be removed and cleaned on both sides. It is also possible to buy a decorative top plate in soapstone, limestone or sandstone, which creates a nice contrast to the black stove and retains the heat for a long time.

Aduro 9 air

Aduro 9 is also available in a version with an external air supply. This version is particularly suitable for houses that are very well-insulated.

Experience Aduro 9 with 360°

Now you can see it up close. Get a better impression of Aduro 9 all the way around with your smartphone or by using the mouse if you are sitting by the computer.

Effect

Nominal power



6,0 kW



Operational area



3-9 kW



Heats



30-140 m2



Energy efficiency



81,3%



Energy class



A+



Advantages

✓ Convection stove



✓ Air-wash system



✓ Primary, secondary and tertiary air supply



✓ Ash pan



✓ Equipped with Aduro-tronic



✓ Possibility of extended warranty



Measurements

Flue outlet top/rear



Ø150 mm

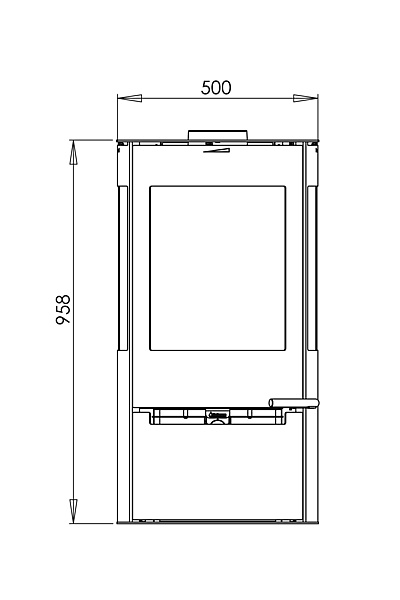

Dimension (HxWxD)



95,8 x 50 x 44,7 cm



Distance from bottom to centre of rear outlet



84 cm



Distance from centre of exhaust branch to rear edge of wood burning stove



19,3 cm



Height exhaust branch above floor level



92,8 cm



Width of wood chamber



40 cm



Max log length



39 cm



Weight



93 kg



Measurements

Distance to combustible material

Behind

20 cm

At side

70 cm

To furniture

80 cm

Please ensure that all local rules and regulations are complied with, including CE marking of the exhaust connector. Additionally, distance requirements to flammable material for the exhaust connector must be respected.

Distance to combustible material

Endorsements

DIN EN13240, CE, Defra, NS3058 & Ecodesign 2022

Download

For user manual and DoP for Aduro 9, click here.
