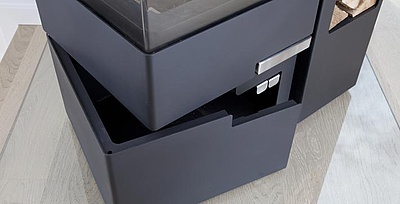

Cubic wood burning stove with storage compartment

Aduro 12 Wood Rack

Cubist wood-burning stove with large corner glass to provide stylish view of the flames from several angles.This stove is best fitted on a straight wall. A new top plate ensures that the module is fully integrated with the stove.... Read more

Interested in buying?

Buy your wood burning stove from one of our dealers. Follow the link to find the dealer list.

  • Description
  • Technical

Cubist wood-burning stove with large corner glass to provide stylish view of the flames from several angles.This stove is best fitted on a straight wall. A new top plate ensures that the module is fully integrated with the stove.

External air supply

Aduro 12 has the option of external air supply where air for combustion from an external source is connected directly to the stove. The air supply itself is concealed behind or beneath the stove. The optimum choice for very well-insulated homes.

See our smart kit for mounting the fresh air HERE

Effect

Nominal power



6,0 kW



Operational area



3-9 kW



Heats



30-140 m2



Energy efficiency



> 80 %



Energy class



A+



Advantages

✓ Convection stove



✓ Air-wash system



✓ Primary, secondary and tertiary air supply



✓ Ash pan



✓ Equipped with Aduro-tronic



✓ Possibility of extended warranty



Measurements

Flue outlet top/rear



Ø150 mm



Dimension (HxWxD)



101,5 x 67,8 x 41,8 cm



Distance from bottom to centre of rear outlet



91,3 cm



Distance from centre of exhaust branch to rear edge of wood burning stove



20,9 cm



Height exhaust branch above floor level



100,5 cm



Width of wood chamber



35 cm



Max log length



34 cm



Measurements

Distance to combustible material

Behind



25 cm



At side



25 cm



Behind wood rack



5 cm



To furniture



80 cm



Please ensure that all local rules and regulations are complied with, including CE marking of the exhaust connector. Additionally, distance requirements to flammable material for the exhaust connector must be respected.

Distance to combustible material

Endorsements

DIN EN13240, CE, Defra, NS3058 & Ecodesign 2022

Download

For user manual, DoC and DoP for Aduro 12 WR, click here.
