Tall and slender wood burning stove on a pedestal

Aduro 22.3 Lux is a slender wood burning stove with a minimal depth which enables the stove to fit perfectly into small spaces. The pedestal lifts the combustion chamber and adds lightness to the design of the stove. The glossy glass door gives the stove an exclusively look, and the glass sides gives you a 180° view of the flames.

In addition to being a stylish piece of furniture for the living room, Aduro 22.3 Lux also has a great combustion. With the integrated Aduro-tronic automatic device, you effortlessly get a clean, effective and environmentally friendly combustion.

External air supply
The stove also has external air supply, in which the air is supplied directly from outside through an air inlet in the stove. The external air supply ensures air for the combustion, which can especially be an advantage if you live in a very airtight house. The air inlet is installed through the outer wall of the house and mounted on the stove. The air inlet itself is hidden by installing it in the back of or behind the stove.

See our convenient kit for mounting fresh air supply HERE.

Effect

Nominal power



5,5 kW



Operational area



3-9 kW



Heats



30-140 m2



Energy efficiency



78%



Energy class



A

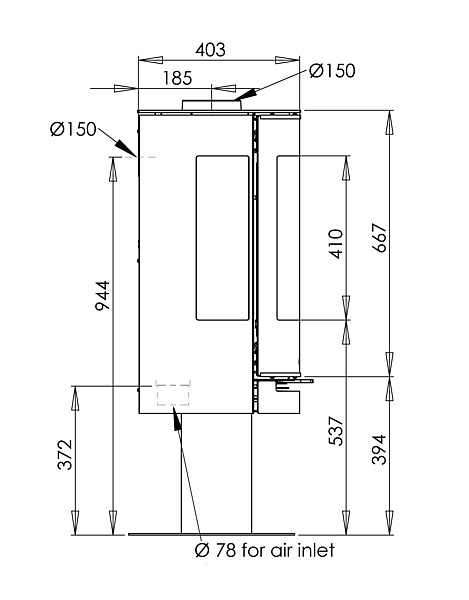

Measurements

Flue outlet top/rear



Ø150 mm



Dimension (HxWxD)



106,1 x 44 x 40,3 cm



Distance from bottom to centre of rear outlet



94,4 cm



Distance from centre of exhaust branch to rear edge of wood burning stove



18,5 cm



Height exhaust branch above floor



104,1 cm



Width of wood chamber



36 cm



Max log length



35 cm



Weight



85 kg



Distance to combustible material

Behind



15 cm



To the side



45 cm



Behind stove with insulated flue pipe



10 cm



To furniture



90 cm



Endorsements

Ecolabel, NS3058, CE, EN13240 & Ecodesign 2022



Specifications

Convection stove



Air-wash system



Primary, secondary and tertiary air supply



Ash pan



Distance to combustible material

For the user manual for Aduro 22.3 Lux, click here.
